انکودر مایفر ACR122u

ویژگی های reader ACR122u :

_ داری درایور و سمپل کد

_ ریدر و رایتر (کد کننده ) مایفر مدل ACR122u

_ اتصال به کامپیوتر با تکنولوژی RFID بدون تماس و فرکانس 13٫56MHZ

_ سازگار با استاندارد ISO/IEC 18092برای ارتباطات برد کوتاه یا (NFC)

_ پشتیبانی کارت های مایفر و ISO 14443 A/B

_ پشتیبانی از تکنولوژی بدون تماس NFC ,Felica

_ دارای ریدر ACR 122U NFC در سیستم های امنیتی تشخیص هویت و هم نقل و انتقالات آنلاین مبالغ کم

_ استفاده از ریدر ACR 122Uبا GuruPlug Serverمی تواند به تنهایی در سیستم های کنترل تردد ، خودپرداز ، کارت پارک و پرداخت عوارض و …

 دانلود دایور انکودر مایفر ACR122u

 * دارای یک سال گارانتی مانی پردازش می باشد.

*برای اطلاع از قیمت انکودر مایفر ACR122u  با کارشناس فروش تماس حاصل فرمایید.

 Mayfair encoder ACR122u

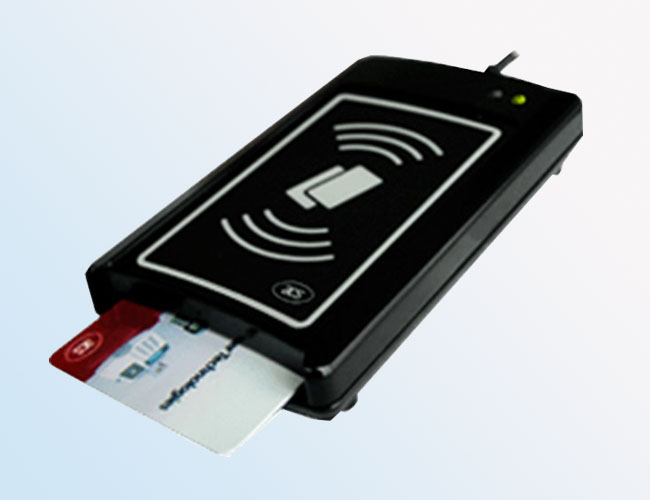

The ACR122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE® and ISO 14443 A and B cards, but also all four types of NFC tags.

ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.

In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.

The ACR122U NFC Reader is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.

CCID Compliance
USB 2.0 Full Speed Interface
Smart Card Reader read/write speed up to 424 kbps
Built-in anti-collision feature (only 1 tag is accessed at any time)
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Application Programming Interface Supports PC/SC and CT-API (through wrapper on top of PC/SC)
Peripherals User-controllable bi-color LED and User-controllable buzzer

Compliance/Certifications

ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS, USB Full Speed
Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012

Operating System Support

Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8
Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64, Win 8 x 64, Win 2012 x64
Windows CE 5.0 and 6.0
